Description
6.29″(160mm) x 51.18″(1300mm) x 4.33″(110mm) DA HYD CYL

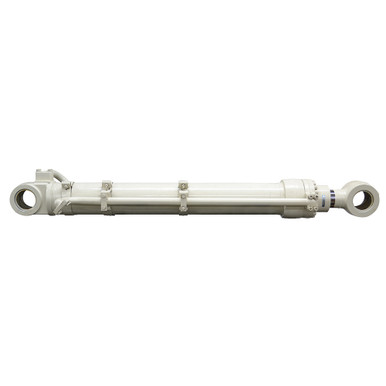

Unused old inventory. DOOSAN double acting hydraulic cylinder. Numbers on cylinder 440-00594.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke6.29″(160mm) x 51.18″(1300mm)
- Barrel Thickness 0.56″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 4.33″(110mm)
|
- Ports 4 bolt 1-1/4″ code 62 flange size 20
- Retracted Length76.75″
- Gland Face to Rod Pin Center 7.625″
- Shpg. 886 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 5.78″
- Pin-Center-To-Tang-End 4.74″
- Pin Hole 4.33″(110mm)
|
- Base End Tang
- Width 5.79″
- Pin-Center-To-Tang-End 3.79″
- Pin Hole 4.33″(110mm)
|
