6.29"(160mm) x 56.75"(1441mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder Komatsu 195-63-01800

6.29″(160mm) x 56.75″(1441mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder Komatsu 195-63-01800

Original price was: $499.95.Current price is: $99.99.

SKU: 904738 Category:

Description

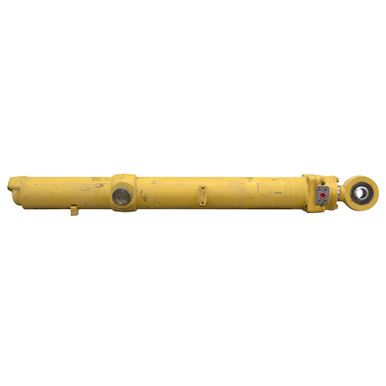

6.29″(160mm) x 56.75″(1441mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. KOMATSU numbers on cylinder 195-63-01800.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.29″(160mm) x 56.75″(1441mm)
  • Barrel Thickness 0.397″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Extend Ports Two bolt flange; two, M16 x 2.0 on 4.25″ bolt centers with a 1.77″ port hole
  • Retract Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Gland Face to Rod Pin Center 5.62″
  • Shpg. 563 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 3.45″
  • Pin-Center-To-Swivel Eye-End 3.95″
  • Swivel Eye Width 3.56″
  • Pin Hole 2.15″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 13.75″ / 8.5″
  • Pin-Center-To-Rod Pin Center 51.375″
  • Pin Center To Base End 24.75″
  • Pin Diameter 3.75″
