Description

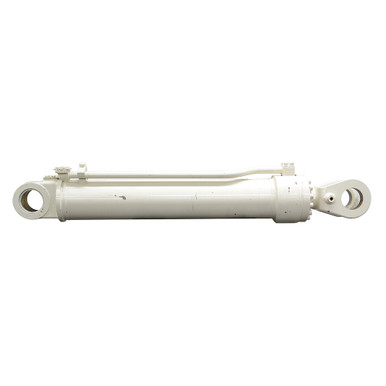

6.309″(160mm) x 36.563″(928mm) x 3.741″(95mm) HYDRAULIC CYLINDER
Unused old inventory. DOOSAN D6H042, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.309″(160mm) x 36.563″(928mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.741″(95mm)
- Rod Thickness 3.741″(95mm)
|
- Ports CODE 62 FLANGE 16
- Retracted Length 57.5″
- Gland Face to Rod Pin Center 7.25″
- Shpg. 519 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 7.406″
- Inside Width 4.166″
- Throat Depth 7″
- Pin Hole 3.939″(100mm)
|
- Base End Tang
- Width 4.718″
- Pin-Center-To-Tang-End 3.535″
- Pin Hole 3.939″(100mm)
|
