Sale!

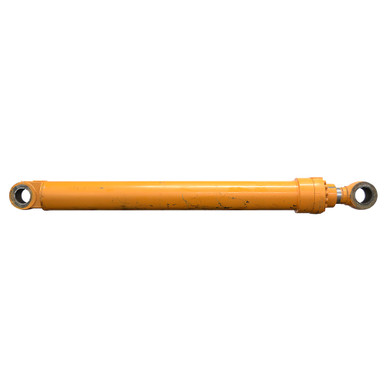

6.49"(165mm) x 62.625"(1590mm) x 4.33"(110mm) Double Acting Hydraulic Cylinder 1146-05610N

6.49″(165mm) x 62.625″(1590mm) x 4.33″(110mm) Double Acting Hydraulic Cylinder 1146-05610N

Original price was: $999.95.Current price is: $199.99.

SKU: 902595 Category:

Description

6.49″(165mm) x 62.625″(1590mm) x 4.33″(110mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 1146-05610N.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke6.49″(165mm) x 62.625″(1590mm)
  • Barrel Thickness 0.633″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 4.33″(110mm)
  • Ports 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length89.25″
  • Gland Face to Rod Pin Center 7.75″
  • Shpg. 886 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 5.12
  • Pin-Center-To-Tang-End 3.82″
  • Pin Hole 4.33″(110mm)
  • Base End Tang
  • Width 4.53″
  • Pin-Center-To-Tang-End 3.84″
  • Pin Hole 3.94″(100mm)
