Description

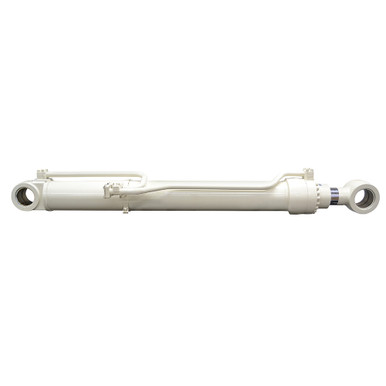

6.513″(165mm) x 57.469″(1460mm) x 4.531″(115mm) HYDRAULIC CYLINDER
Unused old inventory. DOOSAN K1003433.WH, welded, double acting, hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.513″(165mm) x 57.469″(1460mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 4.531″(115mm)
- Rod Thickness 4.531″(115mm)
|
- Ports CODE 61 FLANGE 16
- Retracted Length 84.375″
- Gland Face to Rod Pin Center 8.75″
- Shpg. 933 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 5.772″
- Pin-Center-To-Tang-End 4.053″
- Pin Hole 4.732″(120mm)
|
- Base End Tang
- Width 5.778″
- Pin-Center-To-Tang-End 3.75″
- Pin Hole 4.342″(110mm)
|
