Description

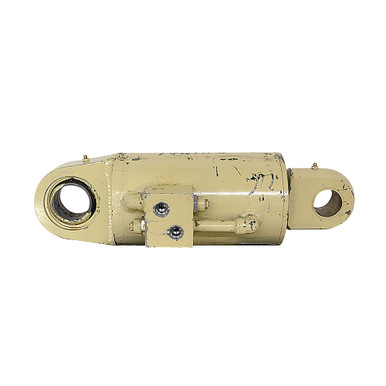

6″ x 10″ x 2.5″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 241701. Cylinder has two SUN 9J78 CBEA LHV 3000 PSI adjustable cartridge valves.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 10″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
|
- Ports SAE 8
- Retracted Length 18″
- Gland Face to Rod Pin Center 3.25″
- Shpg. 119 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.49″
- Pin-Center-To-Tang-End 2.13″
- Pin Hole 2″
|
- Base End Swivel Eye
- Width 2.48″
- Pin-Center-To-Swivel Eye-End 2.643″
- Swivel Eye Width 2.25″
- Pin Hole 2.5″
|
