Description

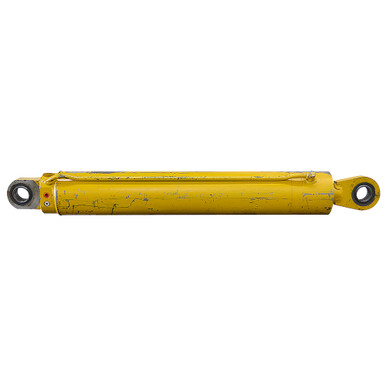

6″ x 32″ x 2.5″ HYD CYL
Unused old inventory. A.F.G.W.U. 1KP323C, welded, double acting hydraulic cylinder. Cylinder has two SAE ports for cartridge valves in base end. Valves not included.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 32″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
|
- Ports SAE 6
- Retracted Length 52.5″
- Gland Face to Rod Pin Center 5.375″
- Shpg. 269 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 1.791″
- Pin-Center-To-Swivel Eye-End 2.177″
- Swivel Eye Width 1.988″
- Pin Hole 2.25″
|
- Base End Swivel Eye
- Width 2.009″
- Pin-Center-To-Swivel Eye-End 2.57″
- Swivel Eye Width 1.987″
- Pin Hole 2.25″
|
