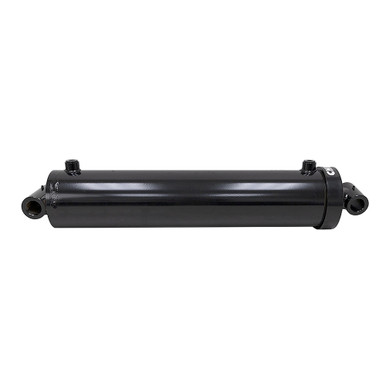

6" x 36" x 3" Double Acting Hydraulic Cylinder Chief 216226

6″ x 36″ x 3″ Double Acting Hydraulic Cylinder Chief 216226

Original price was: $1,141.25.Current price is: $228.25.

SKU: 906244 Category:

Description

6″ x 36″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Brand new. Chief 216226, external thread cap double acting hydraulic cylinder. Featuring welded cross-tube mounts with grease zerk on the rod and base ends. Heavy-duty piston with piston stem, complete with wear rings to reduce friction. The screw-in gland is removable from the rod end for seal servicing convenience. Ground and polished chromed steel rod.

SPECIFICATIONS
  • Brand Chief
  • Model Number 216226
  • Type Double-Acting
  • Bore x Stroke 6″ x 36″
  • Pressure 3000 PSI
  • Rod Dia. 3″
  • Column Load 84820 lbs.
  • Ports SAE 12
  • Retracted Length 47″
  • Shpg. 198 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2.5″
  • Width 4.0″
  • Pin Hole 1.5″
  • Base End Cross-Tube
  • O.D. 2.5″
  • Width 6.75″
  • Pin Hole 1.5″
