Description

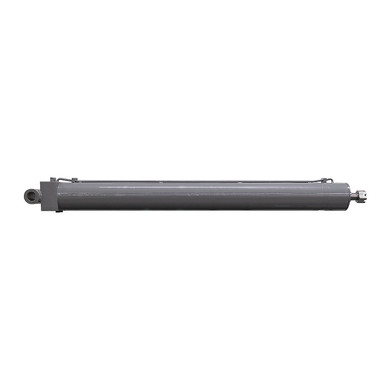

6″ x 39.375″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Bailey 323-051, welded, double acting hydraulic cylinder. Both ports in base end with two SUN CKCB-XCN check valves.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 39.375″
- Gland Retainer Threaded in
- Pressure 3000 PSI max.
- Rod Dia. 2.5″
|
- Ports SAE 6
- Retracted Length 73.375″
- Gland Face to Rod Pin Center 4.5″
- Shpg. 374 lbs.
|
| END MOUNTINGS |
|
- Rod End Threaded
- Thread Size-Pitch 1-3/4″-12 TPI
- Thread Length 2″
|
- Base End Cross-Tube
- O.D. 3.5″
- Width 8″
- Pin Hole 2″
|
