Description

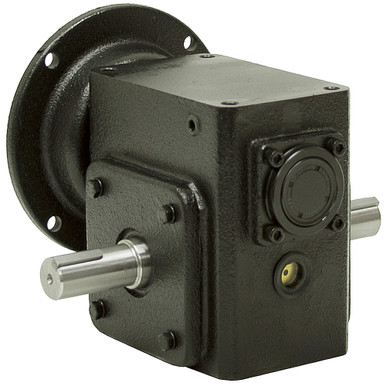

60:1 GEAR REDUCER
Brand new, WORLDWIDE ELECTRIC right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Four tapped mounting holes on top and bottom of case. Shipped filled with oil.
SPECIFICATIONS
- Ratio 60:1
- Input Power 0.60 HP max.
- Input Speed 1725 RPM max.
- Output Speed 29 RPM max.
- Output Torque 750 in-lb. max.
- Output Centerline Height 2.281″
- Overhung Load 639 lbs.
- Motor Mount 56C
- Input Bore 5/8″ keyed
- Output Type Dual shaft
- Output Shafts 1″ dia. x 2-3/32″ keyed
- Mount 5″ x 2-7/8″ centers
- Size 8″ x 6-1/2″ x 7-5/8″
- Shpg. 31 lbs.
