Description

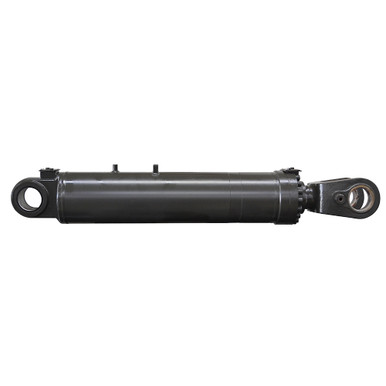

7.074″(180mm) x 31.406″(798mm) x 3.941″(100mm) HYD CYL
Unused old inventory. SHANDONG LINGONG CONST. MACHINERY 4120000600, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.074″(180mm) x 31.406″(798mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.941″(100mm)
- Rod Thickness 3.941″(100mm)
|
- Ports CODE 61 FLANGE 16
- Retracted Length 53″
- Gland Face to Rod Pin Center 8.5″
- Shpg. 528 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 8.656″
- Inside Width 4.968″
- Throat Depth 7.5″
- Pin Hole 3.755″(95mm)
|
- Base End Tang
- Width 4.252″
- Pin-Center-To-Tang-End 3.441″
- Pin Hole 3.742″(95mm)
|
