Description

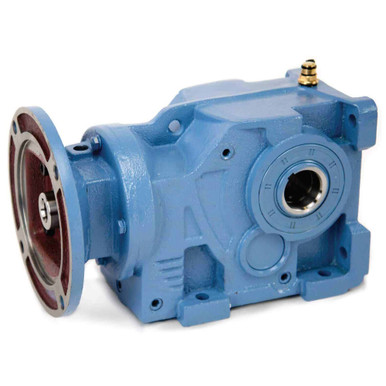

7.11:1 Size 47 8.08 HP Helical Bevel Gear Reducer WWE KHN47-7.5/1-H-182/4TC
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN47-7.5/1-H-182/4TC
- Box Size 47
- Gear Stages 3
- Nominal Ratio 7.5:1
- Actual Ratio 7.11:1
- Output RPM @ 1750 RPM Input 246 RPM
- Input HP 8.08 HP max.
- Output Torque 1875 in.-lbs. max.
- Over-Hung Load 460 lbs. max.
- Motor Mount 182/4TC
- Output Bore 1-3/8″ Hollow Keyed, 1/4″ Keyway
- Horizontal Foot Mount Four 0.43″ holes on 5.12″ x 4.72″ centers
- Vertical Foot Mount Four 0.43″ holes on 5.12″ x 4.72″ centers
- Cross Reference SEW K47
- Size 12.68″ x 6.5″ x 7.45″
- Shpg. 60 lbs.
