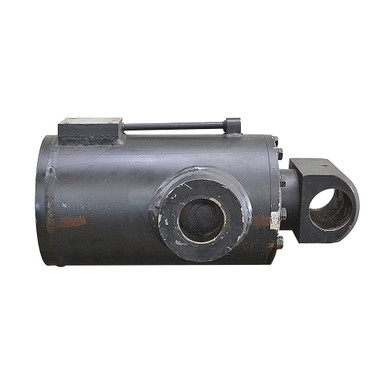

7.456″(190mm) x 7.875″(200mm) x 4.548″(115mm) HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 938J199F12.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.456″(190mm) x 7.875″(200mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 4.548″(115mm)
|
- Manifold Ports Two, 0.386″ dia. holes on 3.034″ centers
- Manifold Mount Four, M10-1.0 threaded bolt holes on 3.034″ x 3.034″ centers
- Retracted Length 9″
- Gland Face to Rod Pin Center 4″
- Shpg. 306 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 5.384″
- Pin-Center-To-Tang-End 2.127″
- Pin Hole 3″
|
- Base End Female Trunnion
- Pin Outside/Inside Width 12″ / 9.5″
- Pin-Center-To-Rod Pin Center 9″
- Pin Center To Base End 10.75″
- Pin Diamter 2.938″(75mm)
|
