Description

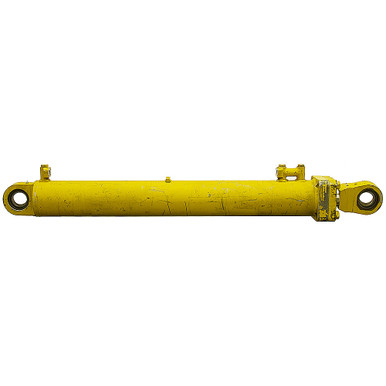

7.5″ x 56.25″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with external bolt-on gland cap. “U288G1913” stamped into cylinder barrel. End of extend stroke double-ported for cushioning.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7-1/2″ x 56-1/4″
- Barrel Thickness 9/16″
- Pressure 3500 PSI max.
- Rod Dia. 4-1/2″
|
- Ports SAE 16 and 1-1/4″ Four Bolt Flange, Code 61
- Retracted Length 83″
- Shpg. 970 lbs.
|
| END MOUNTINGS |
- Rod End Tang w/ Swivel Eye
- Max Thickness 3-1/2″
- Pin Center to Tang End 3-3/4″
- Pin Hole 3-1/4″
|
- Base End Tang w/ Swivel Eye
- Max Thickness 3-1/2″
- Pin Center to Tang End 3-7/8″
- Pin Hole 3-1/4″
|
