Description

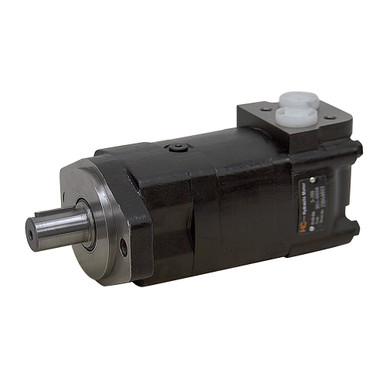

7.62 cu in Hydraulic Motor Hydro Custom BM5A-CAHBDCD
Brand new Hydro Custom BM5 hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn 2000 series motors. Double tapered roller bearings permit high radial loads.
SPECIFICATIONS
- Brand Hydro Custom
- Model BM5A-CAHBDCD
- Manufacturer Part Number CUM 351-0653
- Displacement 7.62 cu in
- Motor Type Gerolor
- Rotation Reversible
- Pressure
3045 PSI cont.
4350 PSI int. - Torque
3182 in-lbs. cont.
4243 in-lbs. int. - Speed
576 RPM cont.
720 RPM int. - Flow
20 GPM cont.
25 GPM int. - Mount SAE A 2 Bolt
- Shaft 1″ x 1.615″ long w/ 1/4″ parallel key, end tapped 1/4″-20
- Ports SAE 10
- Case Drain SAE 4
- Size 10.644″ x 3.74″ x 5.118″
- Shpg. 27 lbs.
