GEAR PUMP

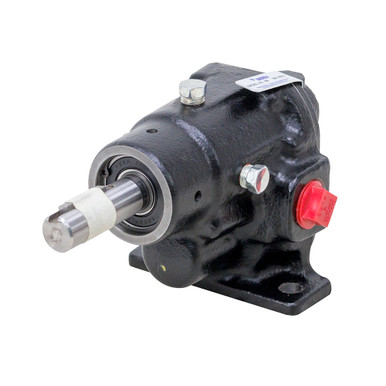

New, Shurflo GPCV3-01-90 heavy duty cast iron pedestal rotary external gear pump. These pumps are specifically designed to be used with oil-based fluids, not to be used with water-based fluids. Pumps include steel spur gears with steel shafts and cast iron shaft support.
SPECIFICATIONS
- Brand Shurflo
- Model Number GPCV3-01-90
- Max. Flow 7.9 GPM
- Max. Pressure 125 PSI
- Max. RPM 1725
- Ports 1/2″ NPT
- Rotation Reversible
- Shaft 5/8″ dia. x 1-7/8″ long w/ 3/16″ keyway
- Mount Two 0.387″ holes on 2-7/8″ centers
- Size 7″ x 3-3/4″ x 4-1/8″
- Shpg 8 lbs.
Performance Pumping 10wt. Oil at 70° F
| GPM | HP | GPM | HP | GPM | HP | |
|---|---|---|---|---|---|---|
| 25 | 3.6 | 1/3 | 4.8 | 1/3 | 6.9 | 1/2 |
| 50 | 3.5 | 1/3 | 4.7 | 1/2 | 6.8 | 3/4 |
| 75 | 3.4 | 1/2 | 4.6 | 1/2 | 6.7 | 1 |
| 100 | 3.2 | 1/2 | 4.4 | 3/4 | 6.5 | 1 |
| 125 | 2.8 | 3/4 | 4.0 | 3/4 | 6.1 | 1-1/2 |
