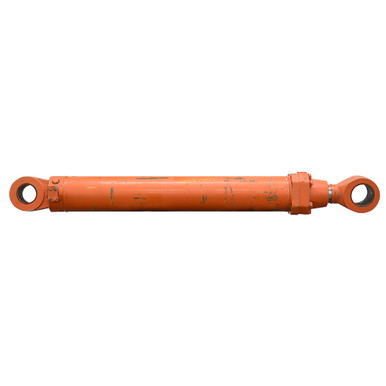

7" x 45" x 4.5" Double Acting Hydraulic Cylinder U431-0210

7″ x 45″ x 4.5″ Double Acting Hydraulic Cylinder U431-0210

Original price was: $499.95.Current price is: $99.99.

SKU: 902573 Category:

Description

7″ x 45″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Model U431-0210

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 45″
  • Barrel Thickness 0.618″
  • Gland Retainer Bolt-On Gland
  • Pressure 3000 PSI max.
  • Rod Dia. 4.5″
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length 55″
  • Shpg. 905 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 5.99″
  • Pin-Center-To-Tang-End 4.11 “
  • Pin Hole 5″
  • Base End Tang
  • Thickness, Max 5.25″
  • Pin-Center-To-Tang-End 4.14″
  • Pin Hole 4-1/4″
