7" x 51" x 5" Double Acting Hydraulic Cylinder 14047966

7″ x 51″ x 5″ Double Acting Hydraulic Cylinder 14047966

Original price was: $699.95.Current price is: $139.99.

SKU: 904499 Category:

Description

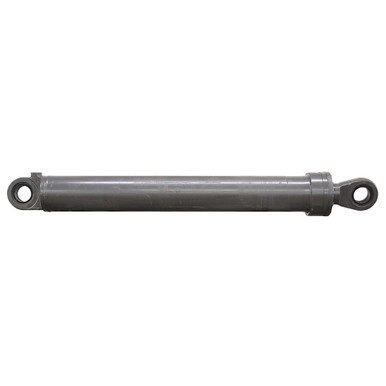

7″ x 51″ x 5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 14047966.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 51″
  • Barrel Thickness 0.525″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 5″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 75.5″
  • Gland Face to Rod Pin Center 7.375″
  • Shpg. 760 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 2.83″
  • Pin-Center-To-Swivel Eye-End 3.58″
  • Swivel Eye Width 2.375″
  • Pin Hole 3-1/2″
  • Base End Swivel Eye
  • Thickness, Max 2.9″
  • Pin-Center-To-Swivel Eye-End 3.59″
  • Swivel Eye Width 2.375″
  • Pin Hole 3-1/2″
