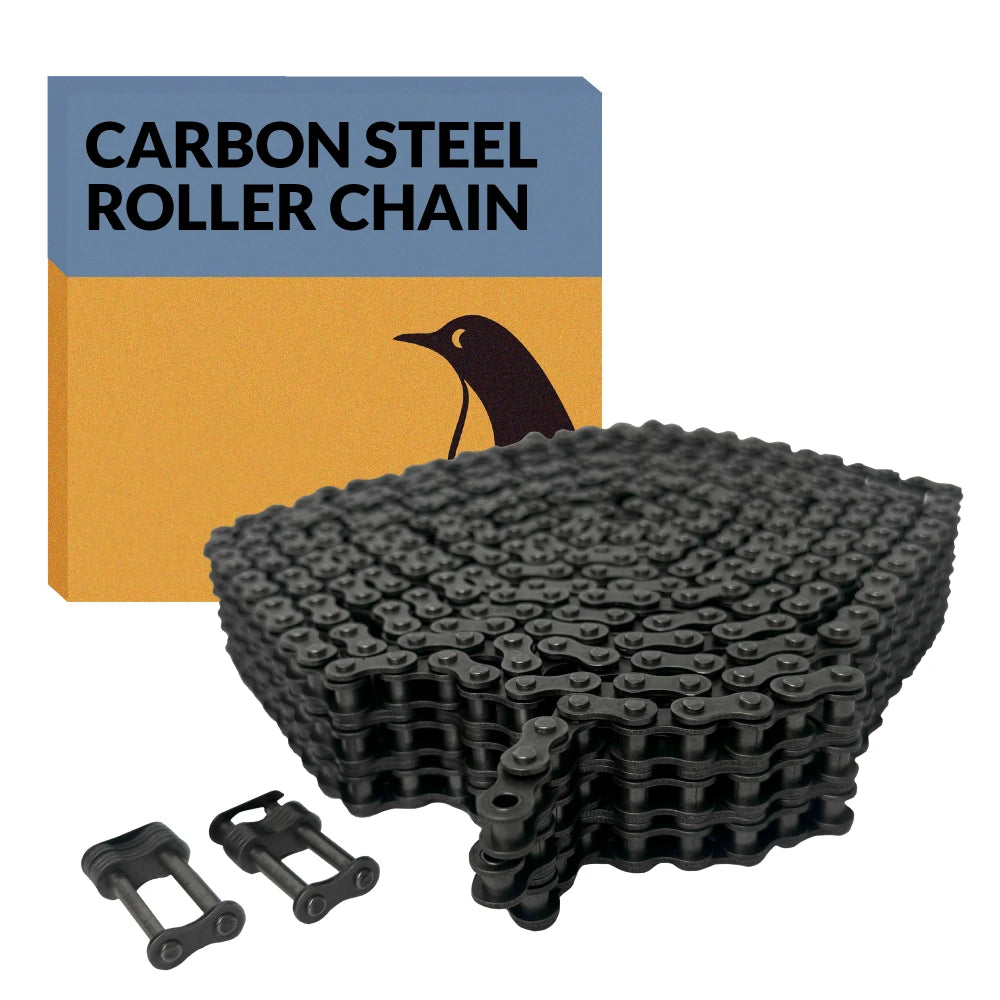

Description
|
ANSI No |
80-3 | LENGTH | 10 ft |
| PITCH | 1.00 inch (25.4 mm) | ROLLER DIAMETER (D1 MAX) |
0.63 inch (15.88 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.62 inch (15.75 mm) | PIN DIAMETER (D2 MAX) |
0.31 inch (7.92 mm) |
| PIN LENGTH (L MAX) |
3.61 inch (91.7 mm) | PIN LENGTH (LC MAX) |
3.69 inch (93.6 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.94 inch (24 mm) | PLATE THICKNESS (T MAX) |
0.31 inch (3.25 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
170.1/38,659 kN/LB | WEIGHT | 5.3 lb/ft (7.89 kg/m) |
