Description

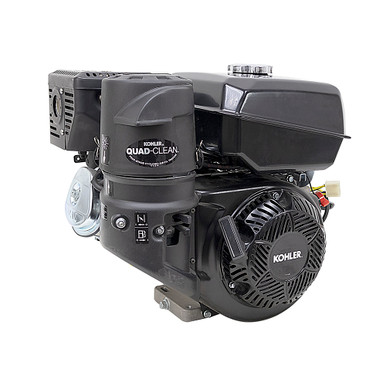

9.5 HP HORIZONTAL SHAFT KOHLER COMMAND PRO SERIES RECOIL START ENGINE
New. Kohler Command Pro Series horizontal engine. Features a heavy-duty air cleaner, forged-steel crankshaft and cast-iron cylinder liner.
SPECIFICATIONS
- Brand Kohler
- Model CH395-3146-R1
- Engine Family Command Pro Series
- Power 9.5 HP
- Torque 13.9 ft-lbs. @ 2800 RPM
- Bore/Stroke 78mm/58mm
- Disp. 277 cc
- Speed 3600 RPM
- Start Recoil
- Fuel Tank Yes
- Shaft 1″ dia. x 3-21/32″ long
- Base Mount Four hole on 3-3/4″ x 7-3/4″ centers
- Accessory Mount
Inner 4 bolt on 5″ B.C.
Outer 4 bolt on 6.5″ B.C. - Size 15.9″ x 16.8″ x 16.7″
- Shpg. 80 lbs.
