Description

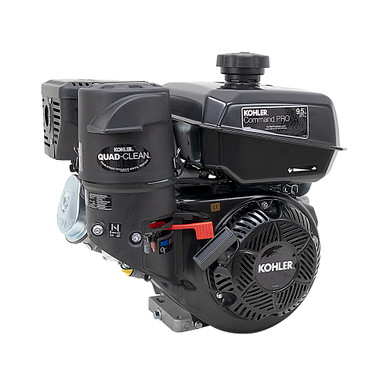

9.5 HP HORIZONTAL SHAFT KOHLER COMMAND PRO SERIES ELECTRIC START ENGINE
New. Kohler Command Pro Series horizontal engine. Features a heavy-duty air cleaner, forged-steel crankshaft, electronic ignition and cast-iron cylinder liner.
SPECIFICATIONS
- Brand Kohler
- Model CH395-3149
- Engine Family Command Pro Series
- Power 9.5 HP
- Torque 13.9 ft-lbs.
- Bore/Stroke 78mm/58mm
- Disp. 277 cc
- Speed 3000 RPM
- Start Recoil
- Fuel Tank 7.39 qt
- Shaft 1″ dia. x 3.49″, 1/4″ keyed, tapped 7/16″-20 UNF
- Base Mount Four hole on 3-3/4″ x 7-3/4″ centers
- Accessory Mount
Inner 4 bolt on 5″ B.C.
Outer 4 bolt on 6.5″ B.C. - Size 15.9″ x 16.8″ x 16.7″
- Shpg. 80 lbs.
