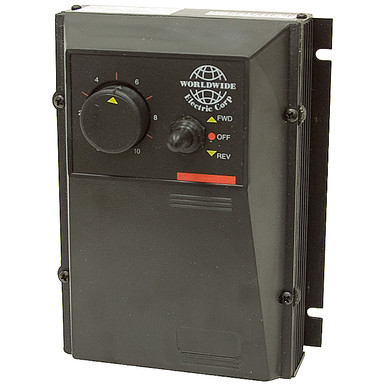

90/180 Volt DC Reversing PMDC Motor Controller Worldwide WDCCONTREV

Description

VARIABLE SPEED DC MOTOR CONTROL W/REVERSE
Brand new, WORLD WIDE ELECTRIC model WDCCONTREV variable speed DC motor controller with reverse. Designed for DC permanent magnet, shunt wound and some universal (AC/DC) motors. Enclosed and gasketed cover rated NEMA 4/12. Integral potentiometers for setting minimum and maximum speed, acceleration and deceleration, torque and IR compensation. FWD/OFF/REV switch and speed control potentiometer on cover face. Heatsink integrated into housing.

SPECIFICATIONS

• Input Voltage 120/240 VAC
• Output
    90 VDC @ 120 VAC
    180 VDC @ 240 VAC
• Amperage
    F.L.A. 10.8 amps DC
• Speed Regulation/Range 1% regulation over 50:1 speed range
• HP Range
    1/8 HP to 1 HP @ 90 VDC
    1/4 HP to 2 HP @ 180 VDC
• Mount 4 bolt on 5-1/8″ x 5-1/2″ centers
• Size7″ x 5-9/16″ x 3-1/4
• Shpg. 4 lbs.
