Description

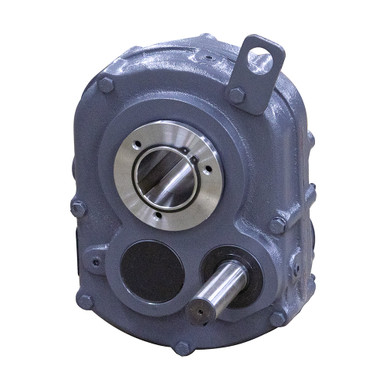

“9:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SCSMR2-9/1
- Ratio 9:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-1/8 diam. X 3-9/16″ w/ 1/4″ keyway
- Output Bore see table below
- Size 8-3/8″ x 11-7/16″ x 5-7/8″
- Shpg. 71 lbs.
Service Class I
Service Class II
Service Class III
| HP |
RPM |
Torque |
HP |
RPM |
Torque |
HP |
RPM |
Torque |
| 7.5 |
85-105 |
5035-4076 in-lbs |
5 |
85-105 |
3357-2717 in-lbs |
3 |
85-105 |
2014-1712 in-lbs |
| 10 |
105-150 |
5435-3804 in-lbs |
7.5 |
110-150 |
3981-2853 in-lbs |
5 |
105-150 |
2717-1902 in-lbs |
| 15 |
160-200 |
5350-4280 in-lbs |
10 |
150-200 |
3804-2853 in-lbs |
7.5 |
160-200 |
2675-2140 in-lbs |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 1-5/16″ |
602619 |
1-3/8″ |
602620 |
| 1-7/16″ |
602621 |
1-1/2″ |
602622 |
| 1-5/8″ |
602623 |
1-11/16″ |
602624 |
| 1-3/4″ |
602625 |
1-15/16″ |
602626 |
OTHER OPTIONS
| MOTOR MOUNT |
602609 |
| BELT GUARD |
602651 |
| SCREW CONVEYOR FLANGE |
603022 |
| SCREW CONVEYOR DRIVE SHAFT |
604140 |
