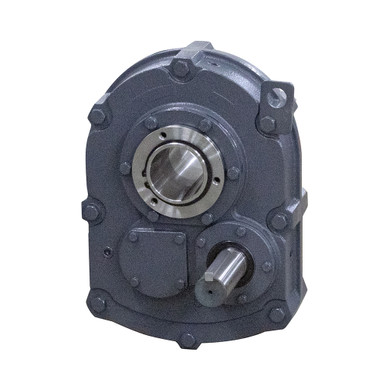

9:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SCSMR5-9/1
- Ratio 9:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-5/16″ diam. X 5-3/4″ w/ 1/2″ keyway
- Output Bore see table below
- Size 13-1/8″ x 18-5/16″ x 8-3/16″
- Shpg. 235 lbs.
Service Class I
Service Class II
Service Class III
| HP |
RPM |
Torque |
HP |
RPM |
Torque |
HP |
RPM |
Torque |
| 25 |
78-95 |
18291-15018 in-lbs |
20 |
78-105 |
14632-10870 in-lbs |
10 |
78-80 |
7316-7133 in-lbs |
| 30 |
85-115 |
20141-14887 in-lbs |
25 |
100-135 |
14267-10568 in-lbs |
15 |
85-105 |
10071-8152 in-lbs |
| 40 |
110-150 |
20752-15218 in-lbs |
30 |
120-160 |
14267-10700 in-lbs |
20 |
110-135 |
10376-8454 in-lbs |
| 50 |
140-180 |
20381-15852 in-lbs |
40 |
160-200 |
14267-11413 in-lbs |
25 |
140-160 |
10190-8917 in-lbs |
| 60 |
170-200 |
20141-17120 in-lbs |
– |
– |
– |
30 |
170-200 |
10071-14267 in-lbs |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 2-3/16″ |
602638 |
2-7/16″ |
602639 |
| 2-1/2″ |
602640 |
2-11/16″ |
602641 |
| 2-15/16″ |
602642 |
OTHER OPTIONS
| MOTOR MOUNT |
602612 |
| BELT GUARD |
602654 |
| SCREW CONVEYOR FLANGE |
604181 |
| SCREW CONVEYOR DRIVE SHAFT |
604184 |
