Description
|

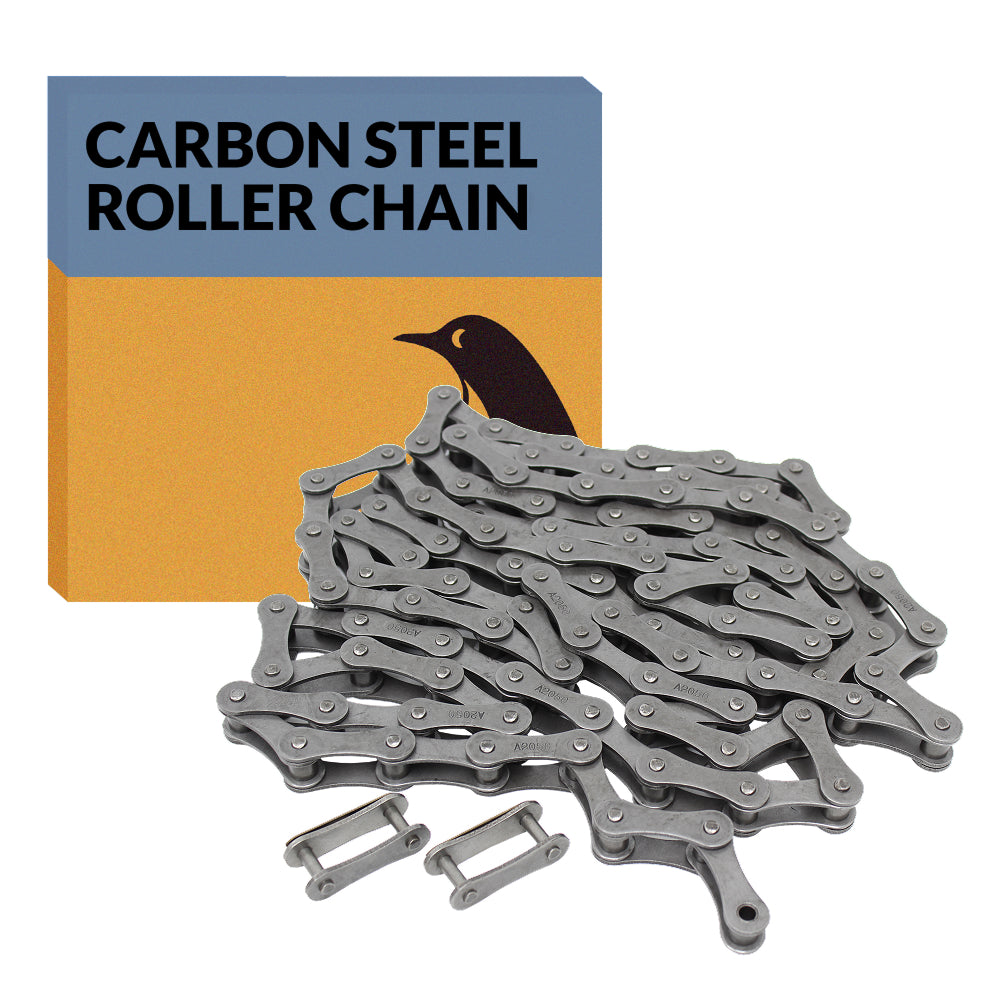

ANSI No |
A2050 | LENGTH | 10 ft |
| PITCH | 1.25 inch (31.75 mm) | ROLLER DIAMETER (D1 MAX) |
0.4 inch (10.16 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.37 inch (9.4 mm) | PIN DIAMETER (D2 MAX) |
0.2 inch (5.08 mm) |
| PIN LENGTH (L MAX) |
0.81 inch (20.7 mm) | PIN LENGTH (LC MAX) |
0.87 inch (22.2 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.59 inch (15 mm) | PLATE THICKNESS (T MAX) |
0.08 inch (2.03 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
22.2/4,991 kN/LB | WEIGHT | 0.61 lb/ft (0.04 kg/m) |
