Description
Standard models for liquid

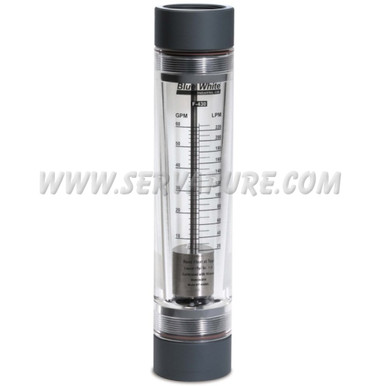

F-430N Features
– Tough machined acrylic meter body, highly polished to a clear finish
– Direct reading permanent scale
– White back reflector makes for easy reading
– Sturdy adapters with high grade Viton o-ring seals
– Standard models have 316 stainless steel float guide rods
– Standard models have 316 stainless steel float
– Acceptable in direct sunlight applications
– Available OEM options: Private labeling, custom calibrations, custom materials.
F-430N Specifications
| Adapter size | 2″ FNPT |
| Low Flow Reading | 6 GPM (20 LPM) |
| High Flow Reading |
60 GPM (230 LPM) |
| Adapter Material |
PVC |
| Float Material |
316 SS |
| Max Working Pressure |
130 psi @ 70° F |
| Max Fluid Temperature |
130°F @ 0 psi |
| Full Scale Accuracy |
+/- 5% |
| O-Ring Seals |
Viton (optional EP) |
| Metered Body |
Machined acrylic |
| Approx. Ship Weight |
6 lb. |
| Dimensions | 14″ x 3″ |
* NIST certificates optional
