Description
| ASAE Design | ASAE |
|---|---|
| Cylinder Bore Size | 3 Inch |
| Cylinder Stroke | 16 Inch |
| Rod Diameter | 1-1/4 Inch |
| Clevis Pin Diameter | 1-1/4 Inch |
| Closed Center to Center Dimension | 31-1/2 Inch |
| Port Thread Size | 1/2 NPT |
| PSI Rating | 2500 PSI |
| Port Thread | NPT |

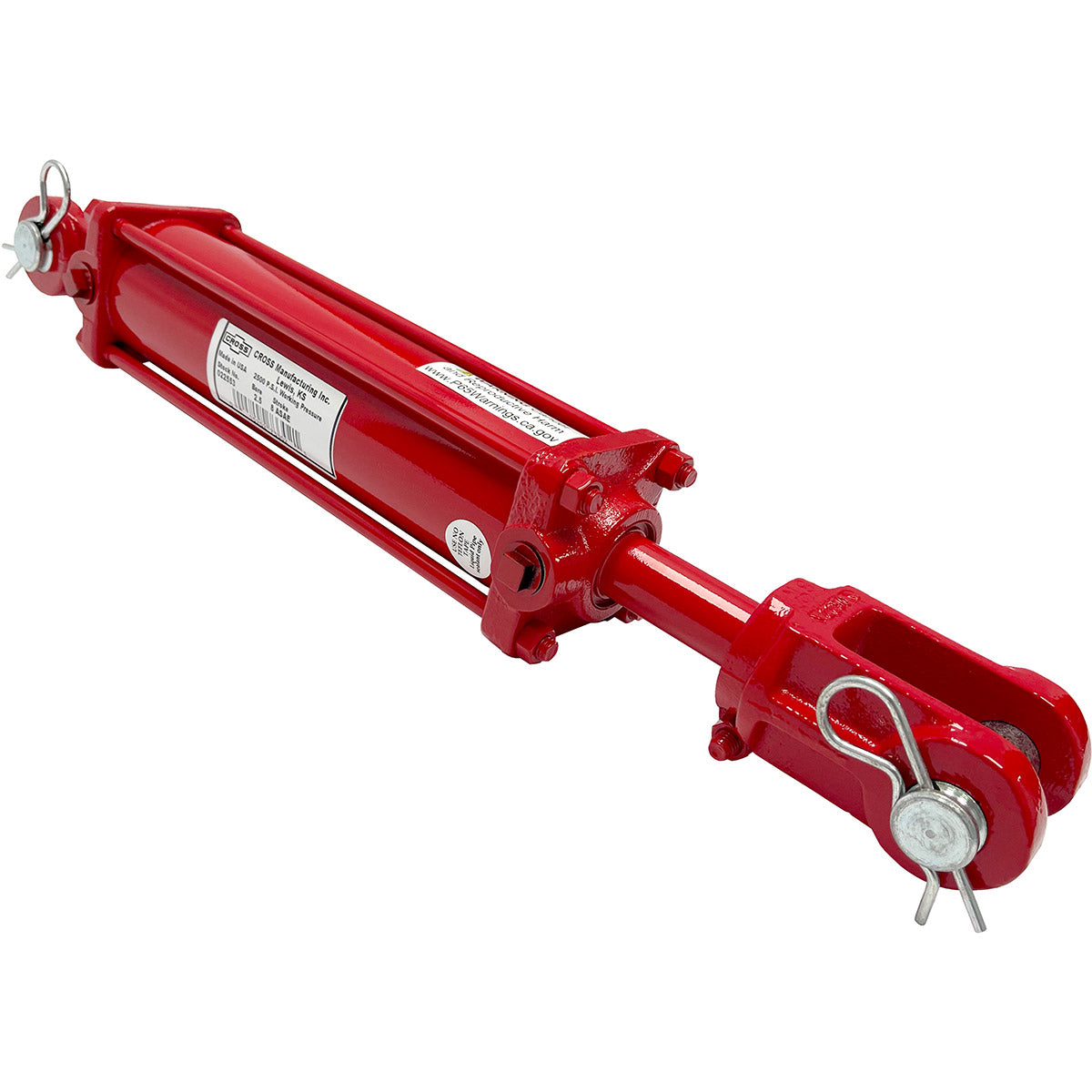

| Product Category | Hydraulic Cylinder |
| Cross Cylinder Series | DB |
| Brand | Cross |
| Interchange Numbers | 015202733502, 022815, 3016ARASAE, 316DB, 316DB-ASAE, 316DBASAE, A316DBASAE, CYR3016AR-ASAE, CYR3016ARASAE, HL3016A |
