FERNCO COUPLINGS
Proflex Specialty Couplings
Shielded transition coupling designed to resist shear forces.

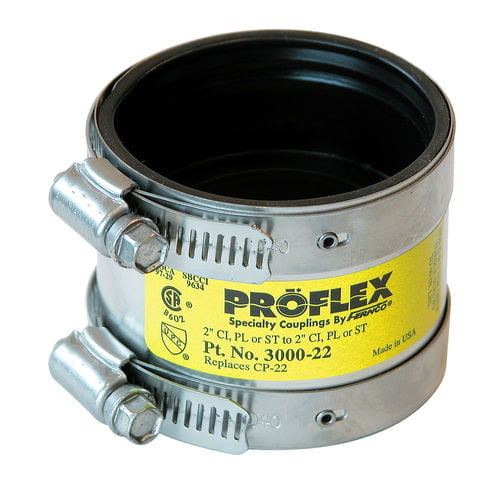

Proflex 3000-22 Coupling Datasheet
Proflex is a shielded transition pipe coupling that allows you to make pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint. From 1 ½” to 8″ pipe diameters – Proflex connects cast iron, plastic, steel, copper and tubular, drain waste and vent systems for above-ground applications.
Features
- .012″ stainless steel shield
- 301 Stainless Steel Clamp Bands
Specifications
- Gasket Material: Neoprene
- Gasket ID: Part No. and application on each gasket.
- Shield assembly material requirements: All 300 series stainless steel
- Clamp
- Band = 301 stainless steel .025 x .500 x length
- Housing = 301 stainless steel – Fernco
- Screw = 305 stainless steel 5/16″ Hex – No Slot
- Shield – 301 stainless steel .012 x 2.125 x length
- Eyelet – 305 stainless steel
- Installation Torque = 60″ lbs.
- Maximum test pressure: 4.3 PSI (29.6KPA)
- Maximum operating temperature: 180° F
- Conforms to the requirement of ASTM C1460
