Description

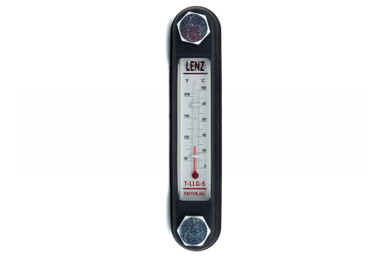

This Lenz fluid level gauge features an onboard thermometer to measure fluid level and temperature up to 212 °F (100 C). It is 6.1 inches overall length and constructed of ultrasonically welded transparent polyamide material. Featuring Buna-N O-ring seals and zinc plated bolts, this fluid level gauge is compatible with petroleum based fluids, gasoline, diesel, and variety of solvents.
- 5″ bolt hole center to bolt hole center
- Slotted guard is steel with black finish
- Maximum Operating Temperature 212°F (100°C)
- 1/2-13 UNC bolt threads
- Maximum pressure 44 PSI (3 Bar)
- Compatible with petroleum based fluids, gasoline, diesel,
and variety of solvents – Only compatible with alcohol if-AR
