Description
Part Description:

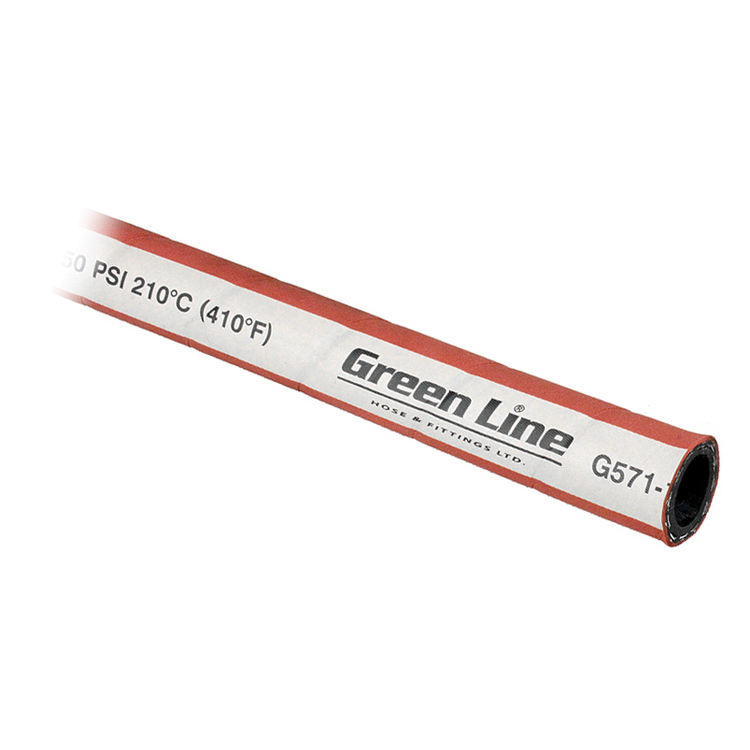

EPDM Steam features a braided steel wire reinforcement which allows better retention to crimped fittings as opposed to clamped fittings when assembled. It is suitable for conveying saturated steam to 250 psi.
Note: All steam hoses will last longer if they are drained after each use. Water that is left in steam hose tends to be absorbed into the tube compound. When the hose is rapidly reheated, the condensed moisture vaporizes in the rubber compound causing blistering of the tube. In general, steam hoses are not a substitute for steel piping and should not be used in manifold systems or any other permanent installation.
| CLAMP SELECTION CHART | ||
| Hose Part No. | Ferrule Part No. | Clamp Part No. |
| G571-075 | G29CR-075 | G29C-075A |
| G571-100 | G29CR-100 | G29C-100AA |
| G571-200 | G29CR-200 | G29C-200A |
Requiring a CRN? Contact Us Today!
The Canadian Registration Number (CRN) is a number issued by an authorized provincial safety authority for any hose or fittings operating greater than 15 psi and may be required before installation. Green Line now offers a range of hose assemblies complete with CRN numbers to be used in a variety of industries. To ensure your hose assembly comes complete with a CRN number, please contact us. CRN hose assemblies are built to order by ISO 9001:2015 certified Green Line Manufacturing Ltd.
