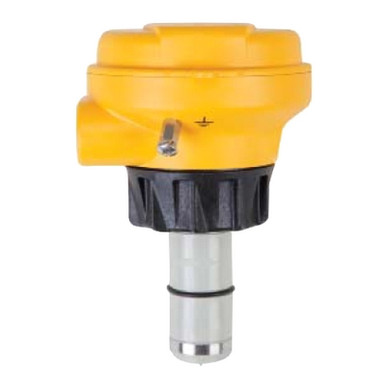

Description
Features:– Frequency or Digital (S3L) output – for use with the 8900 or 9900 instruments
– No Moving Parts
– Bi-directional flow
– Empty pipe detection
– Installs into pipe sizes 10″ to 36″
– Operating range 0.15 to 33 ft/s
– Accurate measurements even in dirty liquids
– Polypropylene and PVDF retaining nuts standard, Valox optional
– No pressure drop
– 4 to 20 mA, digital (S3L) frequency, or relay output (Display only)
Applications:
– Chemical Processing
– Water and Wastewater monitoring
– Metal recovery and landfill leachate
– Commercial pools, spas and aquariums
– HVAC
– Irrigation
– Scrubber Control
– Neutralization Systems
– Industrial Water Distribution
Specifications
– Sensor Body: 316SS and Polypropylene
– O-Rings: FPM
– Operating Range: 0.15 to 33 ft/s
– Pipe Size: 10″ to 36″
– Max Temperature/Pressure Rating: 150 psi @ 77°C/20 psi @ 185°F
– Operating Temperature: Ambient:14°F to 158°F/Media: 32 °F to 185°F
