Description

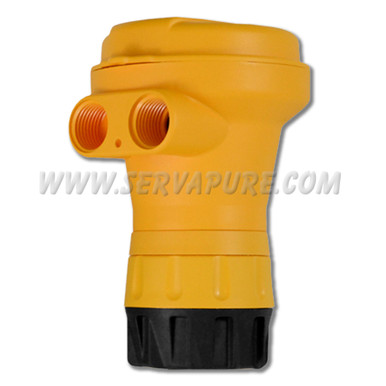

The Signet 2751 pH/ORP Sensor Electronics featuring DryLoc connector, provides a variety of functions to suit various requirements. The 2751 has a preamplified signal and features two different outputs: a two wire 4 to 20 mA loop output with EasyCal function or a digital (S3L) output which allows for longer cable lengths and is compatible with the Signet 8900 or 9900 instruments, and Profibus Concentrator.
The 2751 self-configures for pH or ORP operation via automatic recognition of the electrode type. The optional EasyCal feature allows simple push-button calibration and includes an LED indicator for visual feedback. The DryLoc electrode connector quickly forms a robust assembly for submersible and in-line installations. NEMA 4X junction enclosures are integral parts of the 2751 in-line version and are also available as accessories for the submersible 2750.
Features:– Recommended to be used with 8900 or 9900 instruments
– In-Line integral mount and submersible installation versions
– Automatic temperature compensation
– Auto configuration for pH or ORP operation
– Optional EasyCal calibration aid with automatic buffer recognition
– Junction boxes for convenient wiring
– Patented DryLoc connector provides a quick and secure connections to the sensor
Applications:
– Water and Wastewater treatment
– Neutralization systems
– Scubber control
– Effluent monitoring
– Surface finishing
– Flocculent Coagulation
– Heavy Metal Removal and Recovery
– Toxic Destruction
– Sanitization Systems
– Pool and Spa Control
– Aquatic animal life support systems
Replaces:
– 3-2750-2, 159000745, 159 000 745
Alternate Part Numbers:
– 159001805, 159 001 805 Specifications
General
– Compatible Electrodes: Signet DryLoc pH and ORP Electrodes, Models 2724-2726, 2734-2736, 2756-2757 Wet Tap, 2764-2767, 2774-2777
– Operating Range: pH – 0 to 14 pH
ORP – +/-2,000 mV
– Response Time: pH – <6 sec for 95% of change
ORP – Application dependent
– Materials: In-Line – Valox (PBT)
Submersible – CPVC
Electrical
– Cable Length: 15 ft
– Power: 12 to 24 VDC or 5 to 6,5 VDC
Max Temperature/Pressure Rating
– Submersible: 32°F to 185°F
– In-Line: 32°F to 185°F
– Storage Temperature: -4°F to 185°F
