Description

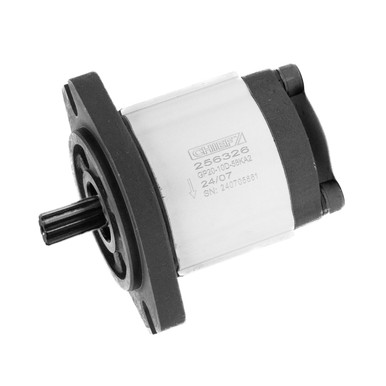

Chief 2PG high pressure hydraulic gear pumps are constructed with aluminum center housing and cast iron plates. This product line features 9 displacement sizes: 0.24 to 1.52in3/rev (4.0-25.0 cm3/rev). It is equipped with the following as standard: SAE A-2 bolt mounting flange, SAE-12 inlet, SAE-10 outlet, and shaft size of 5/8″ diameter straight with 5/32″ key. Additional shaft options are available upon request.
- CID: 0.97
- RPM: 3500
- Shaft: 5/8″-9T Spline
- Rotation: Counterclockwise
