Description

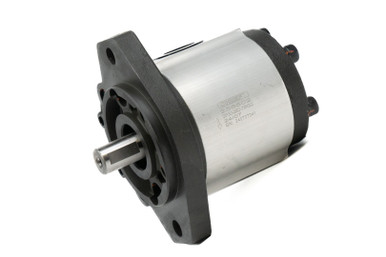

Constructed of an aluminum center housing and cast-iron end plates, the Chief 3PG series is a high-pressure hydraulic gear pump with seven displacement sizes from 1.34 to 3.66 in3/rev (22-60cm3/rev). The standard mounting flange is SAE B—2 bolt, and the standard shaft is a 7/8″ diameter straight with a 1/4″ key. Additional shaft options are available.
The recommended working conditions are as follows:
- Filtration: 25 microns or better
- Oil Viscosity: 6 to 200 cSt
- Ambient Temperature: -8 to 130° F (-22 to 55° C)
- Oil Temperature: -12 to 175° F (-25 to 80° C)
- Inlet pressure 12 to 32 PSI absolute
Specific model features:
- Model code: GP30-22D-78KB2
- CID: 1.34 (22 CC)
- GPM: 9.6 @ 1800 RPM
- RPM: 2000 (rated), 3500 (max)
- PSI: 3625 (rated), 4060 (max)
- Shaft: 7/8” Straight, 1/4” Key
- Mounting flange: SAE B—2 bolt
- Ports: SAE 16 /12
- Rotation: Clockwise
