Description

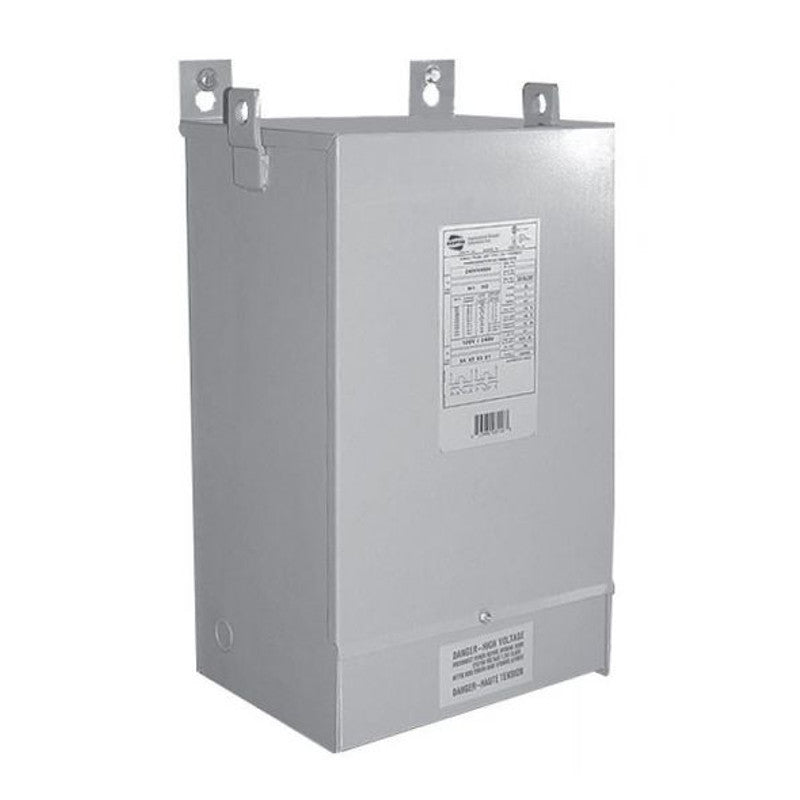

Hammond Q005LEKF 5 kVa Transformer
Technical Information
Enclosure: NQ5-N3R – Indoor or Outdoor
Enclosure Rating: 1, 3R
Enclosure Type: NQ5-N3R – Indoor or Outdoor
Frequency: 60 Hz
Input Voltage: 240X480 V
Mounting Type: Wall
Output Voltage: 120/240 V
Power Rating: 5000 W
Primary Voltage: 240 – 480 V
Secondary Voltage: 120 – 240 V
Temperature Rating: 40 degrees C
Type: Hazardous Location
Wattage: 5000 Watt
Dimensions
Height: 17-1/4 Inch
Length: 7-3/4 Inch
Width: 10 in
Hammond Transformers Datasheet
Hammond Catalog
