Description
Designed for HIF, BC, HMC and FSSS Filter Housings

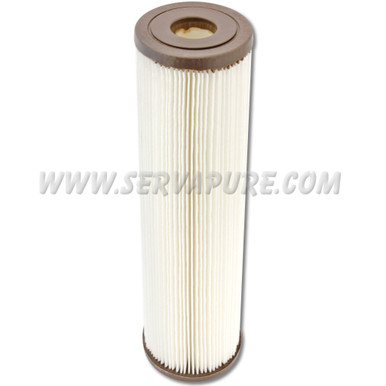

Highley effiecient filter cartridges made of pleated Polyester-Plus™ filter media. The industry’s largest surface area.
– Lower overall operating cost
– High flow capability
– Longer filter runs for fewer change-outs
– Increased contaminant removal
– Lower intial pressure drops
– Reduced maintenance down time and cost
– NSF Certified to ANSI-NSF 61
Features
– Pleated design for more surface area
– FDA approved materials – NSF 61 Certified
– Engineered media for superior performance
– Cleanable and reusable in most applications and micron sizes
– Thermally bonded end caps to ensure better sealing
– Color coded end caps for easy micron identification
– Full product line – largest selection of micron ratings
– High Temperature cartridges available (not NSF 61 Listed)
Applications
– Reverse Osmosis Pre-Filtration – Cooling Tower Filtration
– Municipal Drinking Water Filtration – Chill Water Loop Filtration
– Commercial/Residential Drinking Water Filtration – Food & Beverage Filtration
– Desalination Pre-Filtration – Marine/Aquatic Filtration
– Industrial Water Filtration – Industrial Coolant Filtration
Specifications
Harmsco® HIF filter housings use 9-3/4″, 19-1/2″ and 29-1/4″ length cartridges only.
| Micron Rating | 0.35 Microns |
| Media (sq ft) | 6 |
| Rec. Flow Rate (GPM) |
6 |
| Flow Rate |
4-6 GPM per 9-3/4″ length |
| Filter Dimension | 2-3/4″ OD x 9-3/4″ H (1-1/16″ ID) |
| pH |
3-11 |
| Filter Dimension | 2-3/4″ OD x 9-3/4″ H |
| Filter Media | Polyester-Plus™ |
| End Caps |
Plastisol (pliable PVC), except urethane on HT Series |
| Center Tubes |
Molded ABS or rigid PVC |
| Temperature |
140°F (Standard), 200°F (High temp. cartridges)** |
* Harmsco Recommends operation at 70% of maximum flow rate for optimum performance
** Temperature limits vary and depend on pressure and time under load
