Description
Designed for 4-1/2″ diameter filter housings.
– Lower overall operating cost
– High flow capability
– Longer filter runs for fewer change-outs
– Increased contaminant removal
– Lower intial pressure drops
– Reduced maintenance down time and cost
Features
– Pleated design for more surface area
– FDA approved material – NSF 61 certified
– Engineered media for superior performance
– Cleanable and reusable in most applications and micron sizes
– Thermally bonded end caps to ensure better sealing
– Ful product line- largest selection of micron ratings
Applications
– Reverse Osmosis Pre-Filtration – Cooling Tower Filtration
– Municipal Drinking Water Filtration – Chill Water Loop Filtration
– Commercial/Residential Drinking Water Filtration – Food & Beverage Filtration
– Desalination Pre-Filtration – Marine/Aquatic Filtration
– Industrial Water Filtration
Specifications

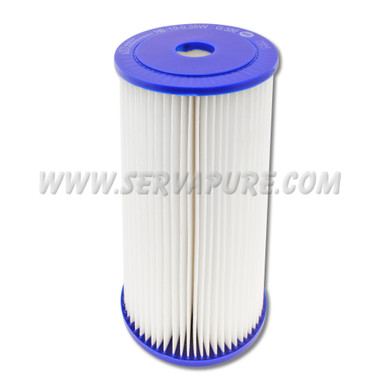

4-1/2″ O.D. 9-3/4″ and 20″ Calypso Blue™ Cartridges
| Nominal Micron Rating | 0.35 Microns |
| Media (sq ft) | 12 |
| Rec. Flow Rate (GPM) |
12 |
| Filter Dimension | 4-1/2″ OD x 9-3/4″ H |
| Filter Media | Polyester-Plus, Synthetic Fiber |
| Ends Caps |
Pliable PVC or Urethane |
| Center Tubes |
ABS or PVC |
| Temperature | 140° F (60°C) |
| Shrink Wrap |
Standard on all cartidges |
