Description

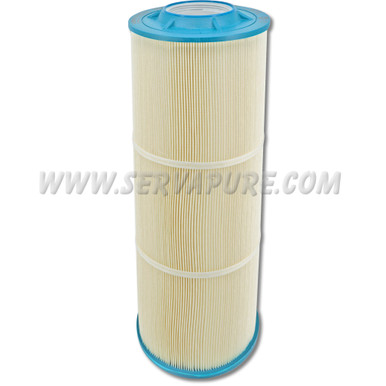

Designed for Hurricane® and WaterBetter® Filter housings
100% Cellulose-free synthetic composite media
– High Flow capability
– Lower overall operating cost
– Reduced waste disposal
– Longer filter runs for fewer change-outs
– Increased contaminant removal
– Operator friendly
– NSF Certified to ANSI-NSF 61
Features
– Fewer cartridges for fewer change-outs and lower maintenance cost
– Pleated synthetic composite filter media provides higher flow rates and lower initial pressure drop
– Pleated surface area provides higher loading capacity for longer filter life and increased paricle removal
– End cap, center tube and media are thermally bonded as one integral component for added strength
Applications
– Reverse Osmosis Pre-Filtration – Cooling Tower Filtration
– Municipal Drinking Water Filtration – Chill Water Loop Filtration
– Commercial/Residential Drinking Water Filtration – Food & Beverage Filtration
– Desalination Pre-Filtration – Marine/Aquatic Filtration
– Industrial Water Filtration – Water Bottlers
Specifications
Cleanable/Reusable in most filtration applications and micron ratings
| Micron Rating | 20 Micron |
| Media (sq ft) | 70 |
| Rec. Flow Rate (GPM) |
70 |
| Max Flow Rate (GPM)* |
100 |
| Max Flow Rate (LPM)* |
378 |
| Max Flow Rate (M3/Hr)* |
24 |
| Filter Dimension | 7-3/4″ OD x 19-1/2″ H |
| Filter Media | 100% cellulose-free synthetic composite |
| End Caps |
Pliable PVC w/ sealing surface built in |
| Center Tubes |
ABS or PVC |
| Temperature |
140°F (60°C)** |
* Harmsco Recommends operation at 70% of maximum flow rate for optimum performance
** Temperature limits vary and depend on pressure and time under load
