Description

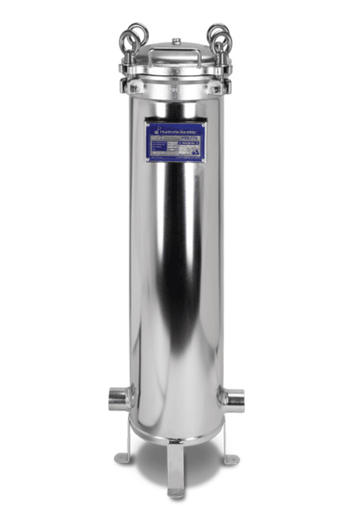

Hydroscientific Swing Bolt Jumbo filter housings provide exceptional performance and deliver durability, quality and price. These swing bolt jumbo filter housings come with Stainless Steel standpipes as a standard feature and through their jumbo radial flow eater entry, water enters the housings and forces water more effectively through the cartridges pleated filter media.
– Electropolished 316 SS- Band Clamp Or swing bolt Design for fast/easy operation- Stainless steel standpipe- Accepts jumbo style cartridges Applications– Residential, Commercial, Industrial and Municipal- Cooling tower filtration- Whole House filtration- Process water- Well Water- Industrial waste water treatmentSpecifications:– Inlet/Outlet Size: 2″ FNPT- Max Flow: 50 GPM – Drains: 1″ FNPT- Vents: 1/4″ FNPT- Gauge Ports: None- Swing Arm: None- No of cartridges: (1)
Materials of Construction
– Housing shell: 316 SS- Lid Closure: Zinc Plated Steel- Vent and drain plugs: 316 SS- Heavy Duty Mounting Legs: 316 SS – O-ring/Gasket: EPDM – FDA Grade Operational Data– Max. Working Pressure: 150 PSI- Max Operating Temperature: 300°F
