Description

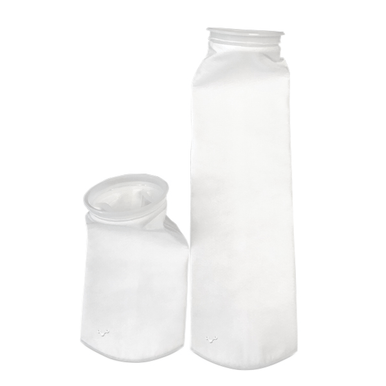

HydroScientific Bag Series Filter Bags are durable, reusable polypropylene felt filters bags designed to fit most manufacturers housings. Precise pore size and micron ratings provide high particle retention and a superb solids-loading capacity. These bags are ideal for applications requiring high efficiency and can be used in a wide range of applications. Glazed for minimal fiber migration and thermally-welded for strength, HydroScientific delivers on cost and quality. Features:– Durable Polypropylene Felt- Designed to fit more manufacturers housings- Polypropylene ring with handle for easy removal- High particle retention- Superb Solids-Loading Capacity- FDA/USP Material Safety Compliance Applications– Process water- Water and wastewater- Prefiltration- Beverages- Lubricants- Paints/Ink- Chemicals- Coatings
Specifications
– Micron Rating: 200 microns- Max Flow Rate: 176 GPM- Dimensions: 7″ OD Diameter x 32″ Length- Box Dimensions: 31″ x 17″ x 19.3″- Box Qty: 50- Shipping Weight: 30 pounds Materials Of Construction– Filter Media: Polypropylene- Ring: Polypropylene- Handle: Polypropylene Recommended Changeout– Differential Pressure: 35 PSID Operational Data– Max Operating Temperature: 195°F @ 20 psi- Max Flow Rate: 176 GPM
