Description

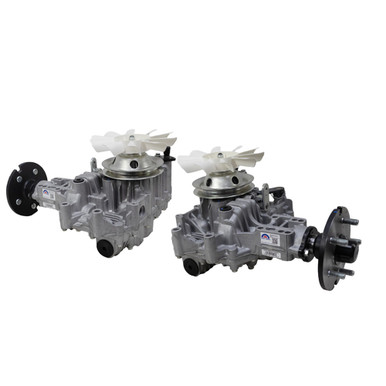

ZTR LEFT & RIGHT HAND TRANSAXLE ASSEMBLY PAIR
New, Tuff Torq TZT13 left & right hand hydrostatic transaxle pair. Features L.O.G.I.C. case design for easy installation, reliability and serviceability, maintenance-free wet disk internal braking system for reliable stopping power and larger pump and motor displacements providing the torque you need for faster mowing speed and maneuverability. Designed to be used on commercial zero-turn mowers.
SPECIFICATIONS
- Brand Tuff Torq
- Part Number 787Q0624310 (LH) 787Q0624320 (RH)
- Model Number TZT13VX (LH) TZT13VY (RH)
- Input Rotation CW
- Vehicle Speed Max. 12-13 mph
- Tire Size 24″+
- Vehicle Weight max. w/ Attachments Operator 2000 lbs. (907 kg)
- Reduction Ratio 16.65:1
- Pump/Motor Displacement 13/13 cc/rev
- Brake Capacity min. 317.9 lb-ft (431 Nm)
- Brake Arm Torque 18.07 lb-ft (24.5 Nm)
- Axle Torque 216.8 lb-ft (294 Nm)
- Fan Size dia. 8.5″ (215.9 mm)
- Pulley Size dia. 6″ (152.4 mm)
- Pulley Height (from axle center) 3.24″ (82.3 mm)
- Output Five bolt (1/2″-20 TPI) wheel hub on 4-1/2″ B.C.
- Mount Four 0.47″ dia. thru holes
- Size for Each Transaxle 18.25″ x 13.5″ x 10.25″
- Shpg 120 lbs. (Two boxes)
