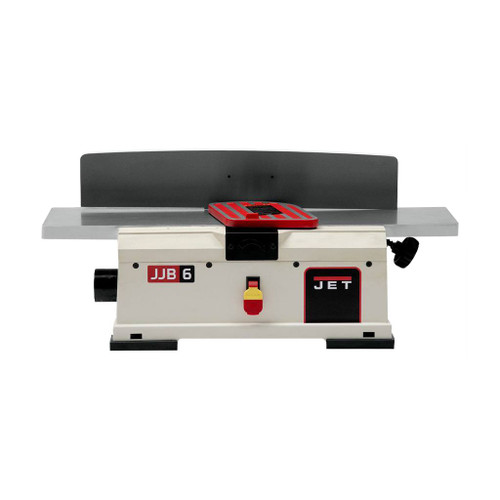

Description
Provides a smooth and consistent cut surface thanks to 14 carbide-tipped helical head blades. Heavy-duty cast iron tables and fully-adjustable fence with locking stops make for a premium cutting experience. Features include internal dust collection system and safety block and push stick.
- Front mounted toggle switch with removable safety key
- Highly visible scale for accurate depth of cut adjustments
- Internal blower motor moves dust and chips away from motor and cutter head
- Large dust collection bag with quick empty zipper
- Powerful 1HP 15 amp motor turns the cutter head at 10,000 RPM
- 6″ jointing capacity in small footprint
Motor: Brushed DC, 115V, 60Hz, 15A
On/off switch: toggle switch with safety key
Recommended circuit size: 15A
Sound emission: 92 dB
Cutterhead speed: 10,000 RPM
Cutterhead diameter: 2″
Number of knives: 14 inserts in 2 spiral rows
Cutter knife size: 0.59″ x 0.59″ x 0.10″T, R6/37°
Dust port diameter: 2-3/8″ (fits 2-1/2″ dust hose)
Jointer table: 28-5/8″ x 6-1/4″
Maximum stock removal: 1/8″
Maximum cutting width: 6″
Fence: 22-3/4″ x 4-3/8″
Fence tilt: 45° L, 90°, 45° R
Fence positive stop: 45° L, 90°, 45°R
Overall dimensions: 30″L x 20″W x 13″H
Weight: 71 lbs.
Includes
fence
4 mounting brackets
push block
push stick
filter bag
dust chute
hardware
tools
manual
