Description

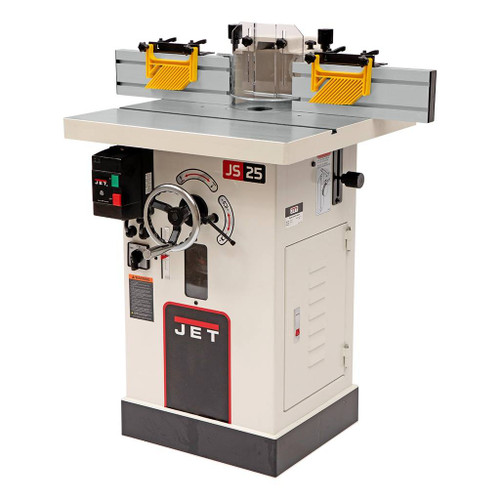

This shaper features a powerful 3HP motor with magnetic controls. The large 25″ x 25-1/2″ precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4″ dust port.
- Extra large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
- Extruded aluminum fence comes with T-slots and 2 feather board hold-downs
- Reversible spindle speeds for diverse shaping jobs
- Starting pins for irregular shaping
- 2 speeds let you select the best speed and torque for different cutter diameters
- V-belt transfers maximum power to the spindle
Motor: 3HP, 230V, 60Hz, 16 Amps, 1 Phase
Recommended Circuit Size: 30 Amps
Table Size: 25-1/2″L x 25″W
Table Height from Floor: 33″
Spindle Size (Standard): 1/2″, 3/4″ Standard
Spindle Capacity Under Nut: Provided spindles (1/2″ Spindle) 2-13/64″, (3/4″ Spindle) 3-3/16″
Spindle Travel: 3-1/2″
Spindle Speeds (RPM): 7,500, 10,000, reversing
Table T-Slot: 3/4″W x 3/8″T
Table Opening Diameter: 6-9/32″
Insert Opening Diameters: 2-9/16″, 4-21/64″
Fence Size x 2: 14-1/2″L x 4-3/4″H
Dust Collection Minimum CFM Required 4″ Port: 600
Overall Dimensions: 32-1/4″L x 28-1/4″W x 42-3/8″H
Weight: 381 lbs.
Includes
2 fences
2 hold-downs
miter assembly
1/2″ spindle
3/4″ spindle
additional accessories
tools
