Description

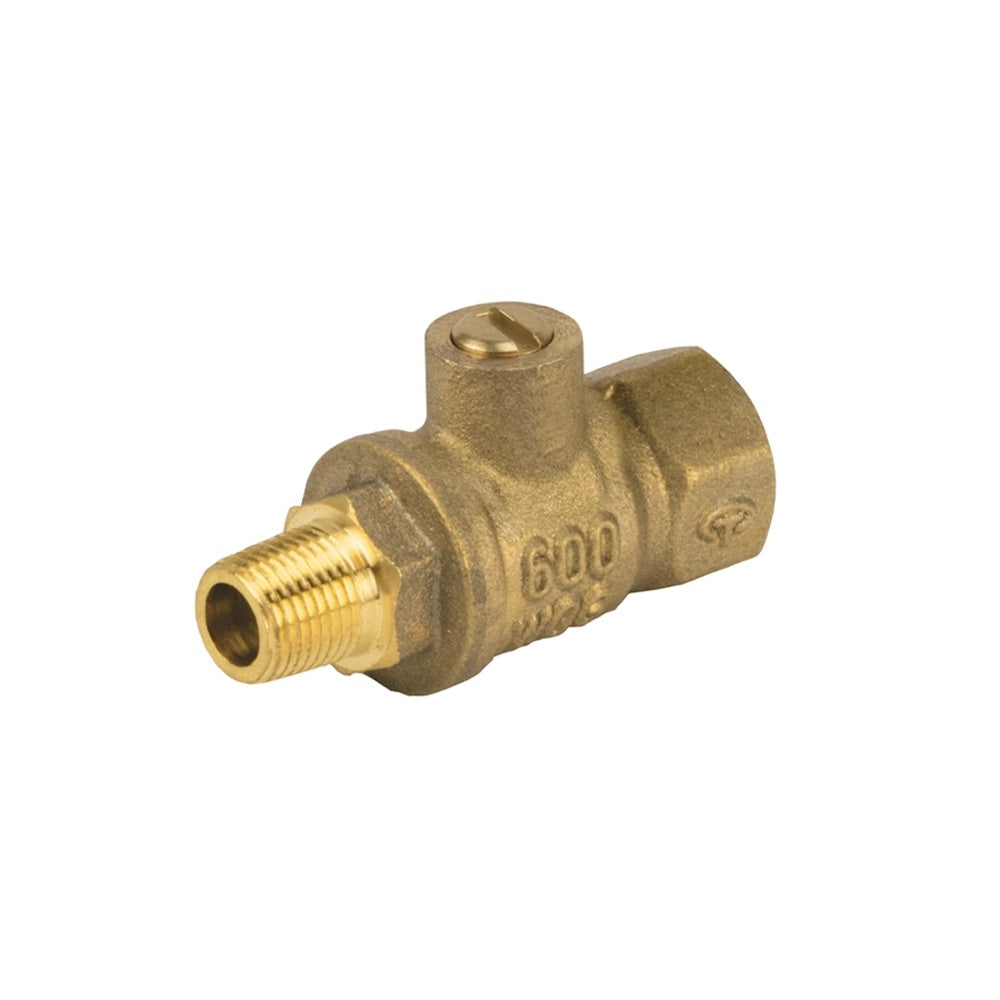

Jomar T-83CG 1/8″ FIP x 1/4″ MIP Connection Lead Free Brass 2-Piece Mini Ball Valves with Screwdriver Slot & Stainless Steel Trim – Pack of 8
Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.
These 1/8″ FIP x 1/4″ MIP T-83CG Series 2-piece mini ball valves with full port threaded FIP x MIP connections are rated for 600 WOG and are NSF 61/NSF 372 certified. Made from lead free brass with stainless steel trim, they feature a screwdriver slot and a 100% leak tested, blow-out proof stem.
Each pack includes 8 100-396G brass mini ball valves with stainless steel ball and stem.
Features
- Dezincification Resistant Brass Alloy
- Stainless Steel Trim
- Wetted Surfaces Contain Less than .25% Lead Content
- Large Raised Wrench Flats
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified – NSF 61 & NSF 372
Specifications
| MPN | 100-396G |
|---|---|
| Size | 1/8″ FIP x 1/4″ MIP |
| Connection Type | Threaded FIP x MIP |
| Handle Type | Screwdriver Slot |
| Pressure Rating | 600 WOG |
| Body Material | Lead Free Brass |
| Trim Material | Stainless Steel |
| Seat Material | PTFE |
| Seal Material | Buna-N |
Certifications
| IAPMO Certified |
|
|---|
- MSS SP-110
- ANSI B1.20.1
