Description

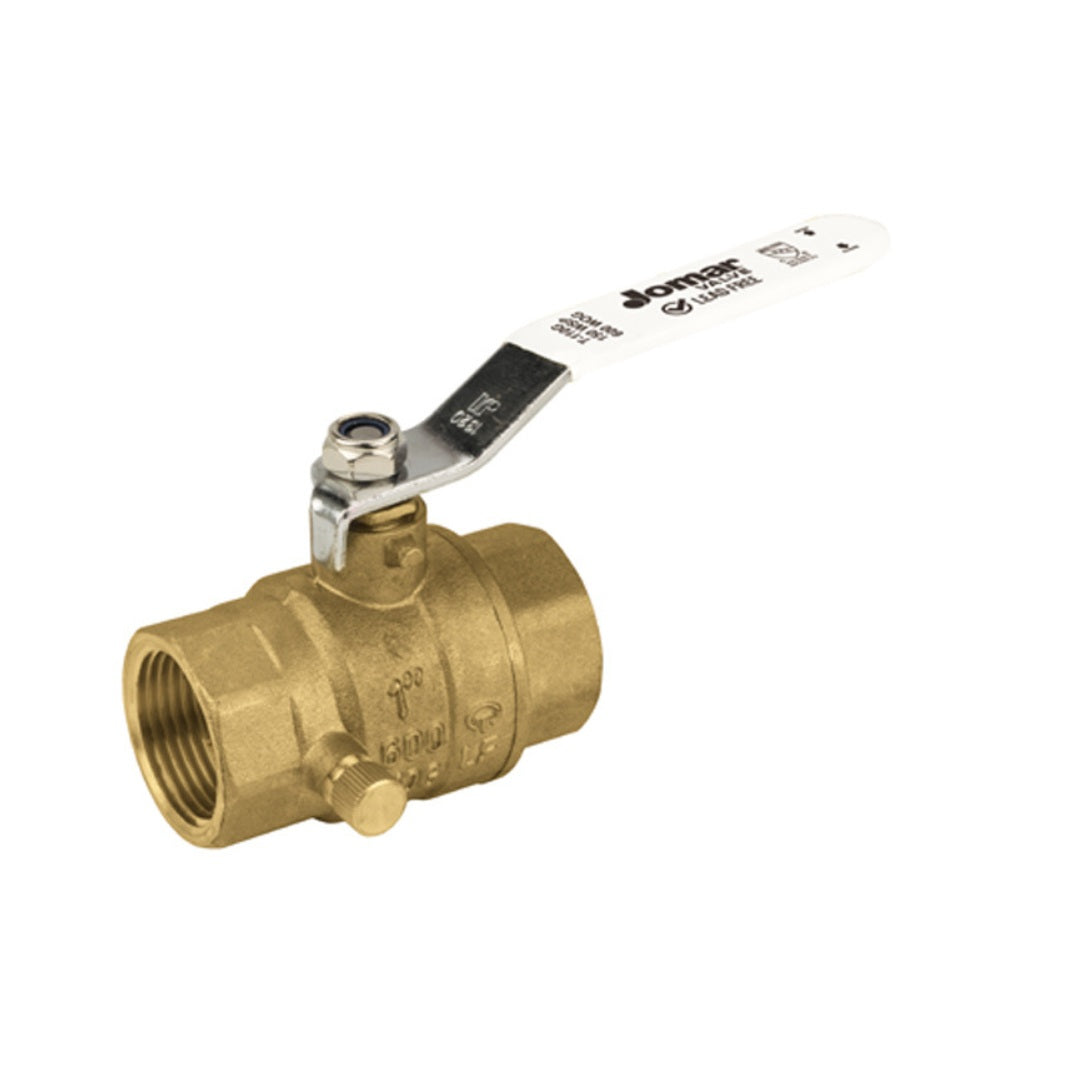

Jomar 3/4 Inch T-110G Series Lead Free Brass 2 Piece Full Port Threaded Ball Valves with Drain and Stainless Steel Trim – Pack of 3
Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.
These 3/4″ T-110G Series lead free brass ball valves with full port threaded connections are rated for 600 psi (WOG) and are NSF 61 / NSF 372 certified. Made from lead free brass with stainless steel trim, they feature a lever handle, a blow-out proof stem and a built-in drain.
Each pack includes 3 100-634G brass ball valves with stainless steel ball and stem.
Features
- Dezincification Resistant Brass Alloy
- Stainless Steel Trim
- Wetted Surfaces Contain Less than .25% Lead Content
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified – NSF 61 & NSF 372 Certified
Specifications
| MPN | 100-634G |
|---|---|
| Size | 3/4″ |
| Connection Type | Threaded |
| Handle Type | Lever |
| Pressure Rating | 600 WOG |
| Body Material | Lead Free Brass |
| Trim Material | Stainless Steel |
| Seat Material | PTFE |
| Seal Material | Buna-N |
Certifications
| IAPMO Certified |
|
|---|
- MSS SP-110
- ANSI B1.20.1
