Description

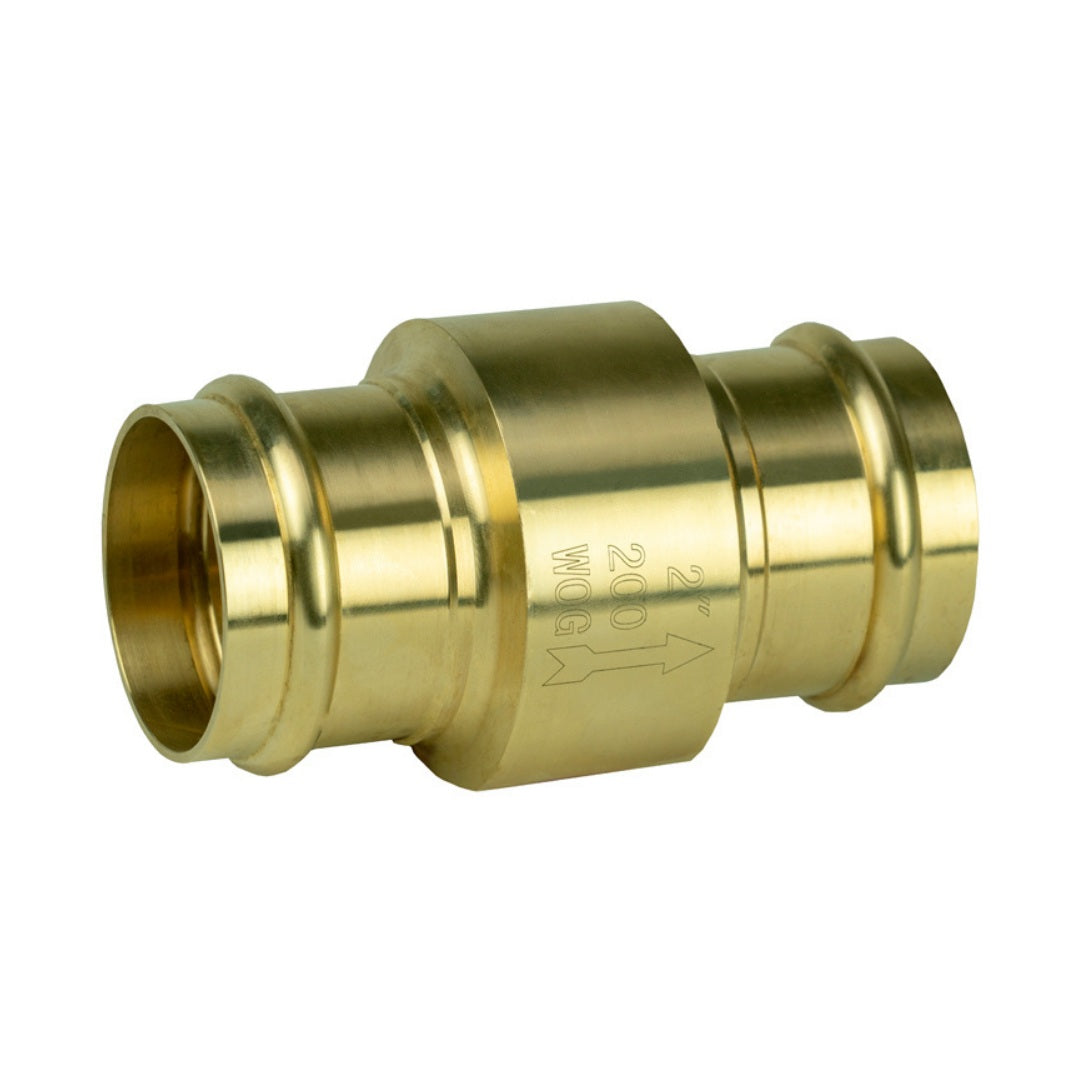

Jomar 1/2 Inch P-521G Series Lead Free Brass Press Connection Inline Check Valves – Pack of 4
Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.
These 1/2″ P-521G Series inline check valves with press connections are rated for 300 WOG and are IAPMO Certified – NSF 61 / NSF 372. Made from lead free brass, they feature a stainless steel spring.
Each pack includes 4 105-623G brass Inline Check Valves.
Features
- Dezincification Resistant Brass Alloy
- Forged Lead Free Brass Body
- Wetted Surfaces Contain Less than .25% Lead Content
- Can be Installed in Vertical or Horizontal Positions
- IAPMO Certified – NSF 61-08 & NSF 372
- Conforms to ASME B16.51
Specifications
| MPN | 105-623G |
|---|---|
| Size | 1/2″ |
| Connection Type | Press |
| Type | Inline |
| Pressure Rating | 300 WOG |
| Class | 150 |
| Body Material | Lead Free Brass |
| Trim Material | Stainless Steel Spring |
| Seat Material | EPDM |
| Seal Material | EPDM |
Certifications
| IAPMO Certified |
|
|---|
- Conforms to ASME B16.51
