Description
ZTR LEFT HAND TRANSAXLE ASSEMBLY

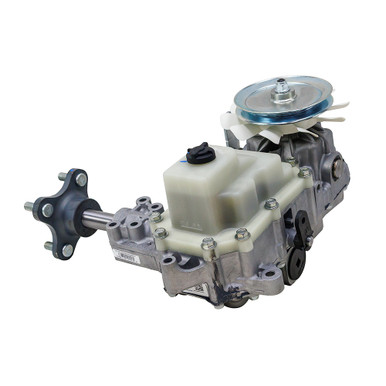

New, Tuff Torq TZ-450B-X 787Q2124020 left hand hydrostatic transaxle. Features 5″ dia. belt-drive input pulley with 7″ dia. fan, polymer fluid tank, heavy steel axles for added strength and control, aluminum case for professional-grade durability and dependable performance and an internal braking system. Designed to be used on residential zero-turn mowers.
SPECIFICATIONS
- Brand Tuff Torq
- Part Number 787Q2124020
- Model Number TZ-450B-X
- Input Rotation CW
- Vehilce Speed Max. 10.5 mph
- Tire Size 23″ max.
- Vehicle Weight max. w/ Attachments & Operator 1275 lbs. (578 kg)
- Reduction Ratio 18:1
- Pump/Motor Displacement 10/10 cc/rev
- Brake Capacity min. 180 lb-ft (180 Nm)
- Brake Arm Torque 11.7 lb-ft (15.8 Nm)
- Axle Torque 321 lb-ft (435 Nm)
- Fan Size dia. 7″ (177.8 mm)
- Pulley Size dia. 5″ (127 mm)
- Axel Length 4-1/8″ (Housing to Face of Hub)
- Output Four bolt (1/2″-20 TPI) wheel hub on 4″ B.C.
- Mount Six 0.38″ dia. thru holes
- Size 15-1/2″ x 15-1/4″ x 9″
- Shpg 41 lbs.
