Description

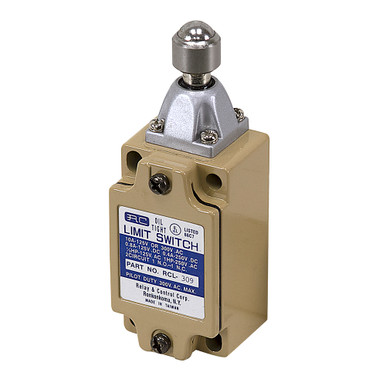

PRECISION OIL TIGHT TOP BALL PUSH ROD PLUNGER LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 30 operations per minute.
SPECIFICATIONS
- Brand Relay & Controls Corp
- Model RCL-309
- Contact Type 1 Normally Open, 1 Normally Closed
- Contact Ratings:
10 Amps @ 125 Volt AC
1/2 HP @ 125 Volt AC, 1 HP @ 250 Volt AC
300 Volt AC max. - Operating Force Max. 6 lbs.
- Release Force Min. 2 lbs.
- Pre-Travel Max. 0.07″
- Over-Travel Min. 0.157″
- Differential Travel Max. 0.04″
- Operating Position 44.5±0.8mm
- Terminals Screw
- Size 1-5/8″ x 1-1/2″ x 4″ (housing only)
- Mount 4 holes 1-1/8″ x 2-3/8″
- Shpg. 1 lbs.
