Description

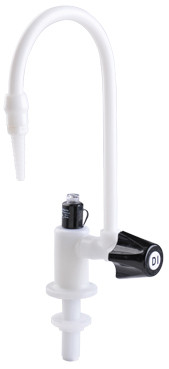

The Series LG Gooseneck Lab faucet with resistivity light provide access of Type I, II and III Deionized lab water while also providing a reliable and economical method of monitoring water quality via resistivity. The monitoring is simple; the green light indicates water resistivity is above the threshold value; the red light warns that is below.
Features & Benefits
– Max flow rate of 2.5 GPM at 80 psi– Installed water quality light accurately senses purity levels from 10K ohm/cm up to 1 Meg ohm/cm– The water quality light uses a wall transformer to convert 120 VAC to 9 VDC to ensure safer operation and longer life. 9 FT electrical cord with plug provided– Gooseneck component is heavy wall, custom extruded for increased rigidity– Positive stop at off position, prevents over-tightening– FDA, USDA & USP standards met or exceeded
Markets/Applications
– Life sciences- Semiconductor manufacturing- Mining- Food & Beverage- Cosmetics- Chromatography/Spectrometry- Hospitals- University Research Labs- Specialty Chemicals
Specifications
– Material: PVDF- Mounting: Deck mounted- Seal Material: Virgin PTFE- Inlet Connection: 3/8″ FPT (3/8″ OD Tube x 3/8″ MPT Jaco Compression Tube Fitting Included)- Working Pressure: Max 125 psi at 70°F- Max Flow Rate: 2.5 GPM- Max Temp: 100°F- Resistivity Light Supply Voltage: 120 VAC- Resistivity Light Cord Length: 9 FT- Codes & Standards: ARRA Section 1605 “Buy American” Compliant. ASME A112.18.1M
