Description

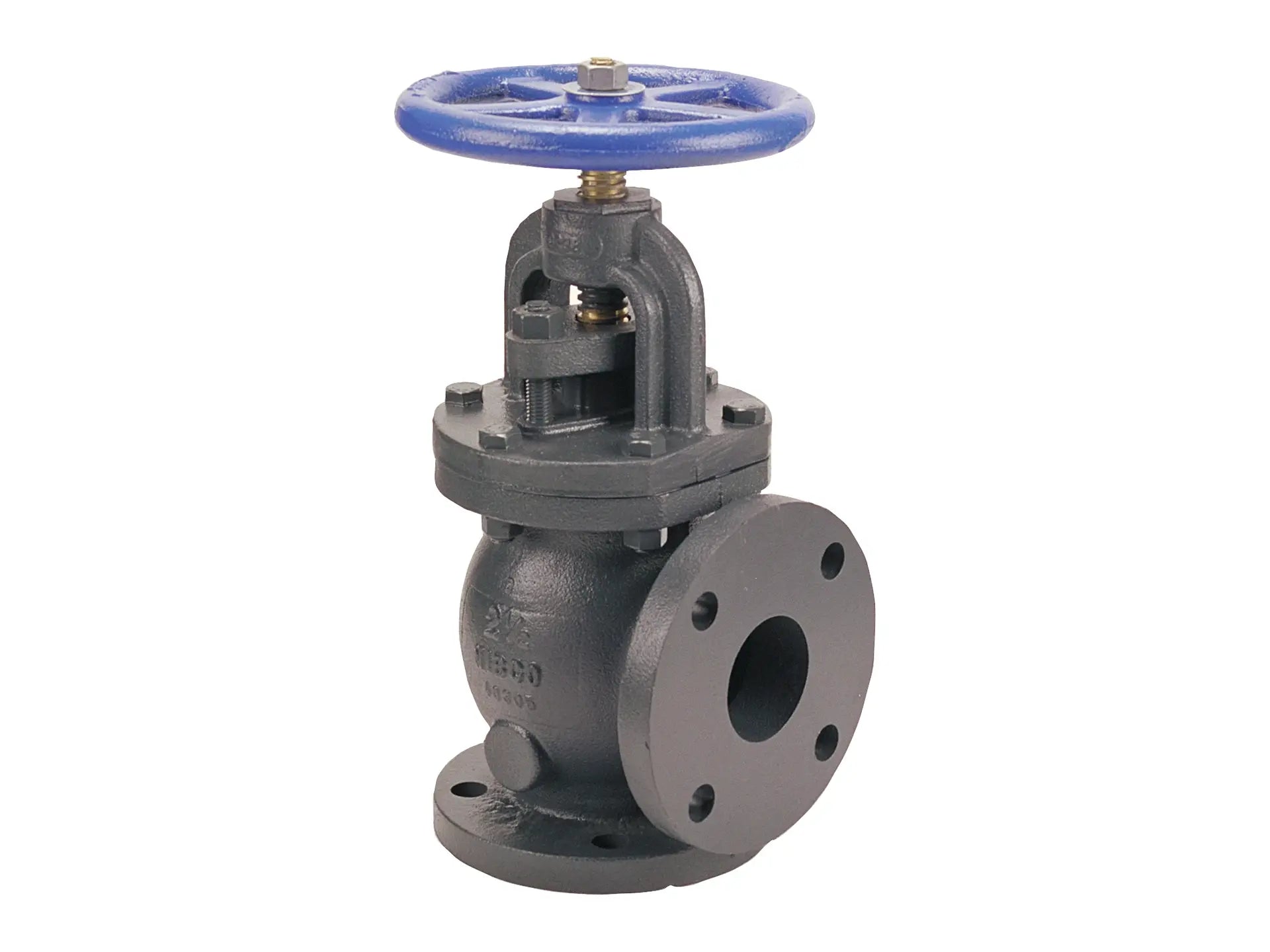

5″ Class 125 flanged cast iron angle valve with bronze trim that is rated for 125 psi/8.6 bar saturated steam to 353°F/178°C. This valve features a bolted bonnet and renewable seat and disc. Use in U.S. drinking water applications is prohibited after January 3, 2014.
Features
- 125 psi/8.6 bar saturated steam to 353°F/178°C
- 200 psi/13.8 bar non-shock cold working pressure
- Bolted bonnet
- Bronze mounted trim
- Renewable seat and disc
- Class 125 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-85
